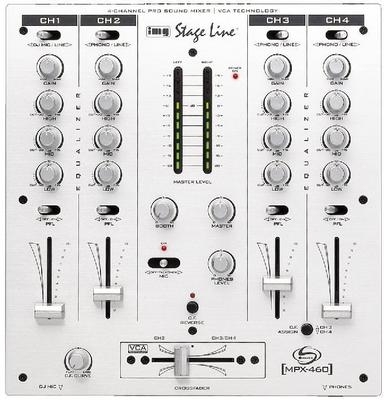

Stage Line MPX-460 DJ-mikseri

MPX-460
[00201760]

Stage Line MPX-460 DJ-mikseri

CH: 4 stereo/1 mic

monitor out

VCA crossfader

crossfader curve control

switchable output voltage

Stereo DJ audio mixer,

with brushed aluminium front panel.


• 4 input channels (7 stereo ways, 1 DJ microphone way)
• Gain control and 3-way equalizer with cut function for each of the input channels
• Automatic talkover
• Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output
• Replaceable crossfader with VCA technology, curve control, assign switch, and reverse switch

• Especially easy-sliding HQ faders, with additional guides
• Stereo LED level display

VCA - WHAT IS THAT?

In the top DJ mixers from IMG Stage Line so-called VCA faders are used as crossfaders and partly even as channel faders. VCA faders (Voltage Controlled Amplifier) are a considerable further development compared to standard faders. In this case, the signal is not directly adjusted to a higher or lower volume but a special preamplifier is controlled which the signal passes through. In case of interruptions of the fader contacts, e.g. by dirt accumulation or wear and tear, the signal is not interfered and the known crackling and interruptions of older faders do not occur. However, only the volume getting lower or higher stagnates for a very small moment, which is inaudible. The possible service life and operational safety of our VCA faders is thus many times higher than that of basic faders.

STEREO DJ AUDIO MIXER,

a high-quality all-round mixer, can be used both as a battle mixer with extensive features and as an audio mixer with perfect ergonomics.

4 input channels (7 stereo ways, 1 DJ microphone way) - Gain controls and 3-way equalizer with cut function for the input channels - Automatic talkover - Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output - Replaceable crossfader with VCA technology, curve control, assign switch, and reverse switch - Especially easy-sliding HQ faders, with additional guides - Stereo LED level display - Brushed aluminium front panel

DJ-Magazin 2/2002 "... simply more switchable inputs, of very compact design and additionally features ... an output level selector switch, to be switched from 1V to 2V. It is possible after all!"
