Omnitronic LH-068 DI-boxi

Omnitronic LH-068 DI-boxi

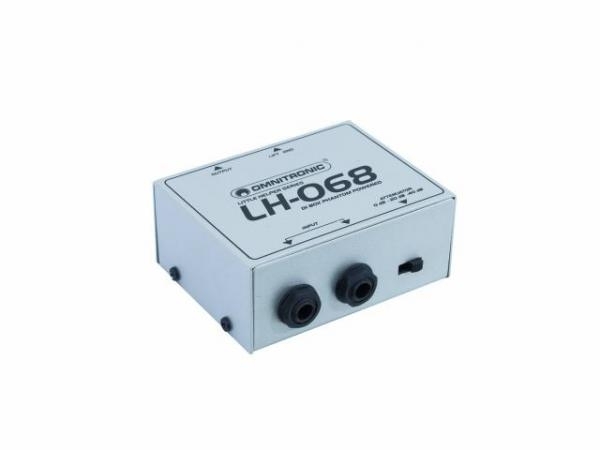

OMNITRONIC LH-068 DI box, phantom powered

1-channel DI box, phantom powered
Converts 1 unbalanced line input (e.g. instruments) into 1 balanced XLR output for connecting a mixer
Switchable input attenuation: 0 dB, -20 dB, -40 dB
Ground-lift switch eliminates ground loop problems
1 signal input (6.3 mm jack)
1 parallel output (6.3 mm jack), feed-through of the input signal (e.g. to a guitar amplifier)
1 low-impedance XLR output
Requires +48 V phantom power for operation



Tekniset tiedot

- Power supply: +48 V phantom power
- Input connectors: Jack mounting sockets
- Output connector: XLR mounting plug
- THD: 0.5 %
- Dimensions: 95 x 80 x 40 mm
- Weight: 0.5 kg
