Omnitrconic LH-055 passiivinen DI-boxi

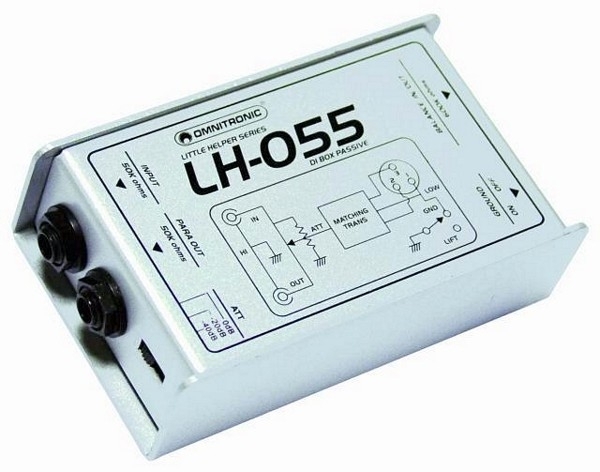

Omnitronic LH-055 passiivinen DI-boxi

Passive DI-box

- Converts unbalanced instrument-inputs into balanced 600-Ohms-mixer-outputs
- Ground-lift switch
- Attenuation adjustable at 0 dB/-20 dB/-40 dB
- 1 parallel-output (1/4" jack plug)
- 1 low-impedance XLR-output
- Practically no level losses

Technical specifications

Frequency range: 15 Hz - 30 kHz
Input impedance: 50 kOhms
Output impedance: 600 Ohms
Frequency range: 15 Hz - 30 kHz
S/N-ratio: >95 dB
Dimensions: 127 x 74 x 45 mm
Weight: 650 g
