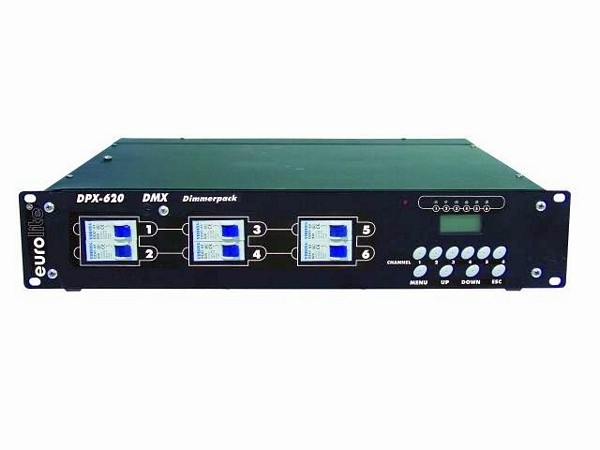

EUROLITE DPX-620 DMX-kontrolleri analogitoiminnolla

Hinta: 344,00

Tälle tuotteelle toimituskulut alk. 0,00 € (Postipaketti)

Määrä: kpl

EUROLITE DPX-620 DMX-kontrolleri analogitoiminnolla



Digital 6-channel dimming pack

- Universal dimming pack for professional use
- Can be operated 1-phase or 3-phase
- 6 x 20 A
- DMX-control or analogue control possible
- The DMX-starting address can be adjusted on the device
- Synchronisation of several DPX-620 possible via DMX
- Adjusting the lamp pre-heat
- All modes are displayed via LEDs and the display
- With automatic circuit breaker per channel
- Channel-outputs on the rearpanel via pole connectors

Technical specifications

Power supply: 230-380 V AC, 50 Hz ~
Max. power output: 27600 W
Max. current: 120 A

Number of control-channels: 6
Max. output/channel: 4600 W
Max. current/channel: 20 A

Integrated programs: 12

Output sockets: Via pole connectors
Circuit breaker: 6 x B 20 A

Dimensions (WxDxH): 420 x 482 x 95 mm
19" mounting dimensions with 2 u
Minimum mounting depth: 500 mm
Weight: 8 kg
