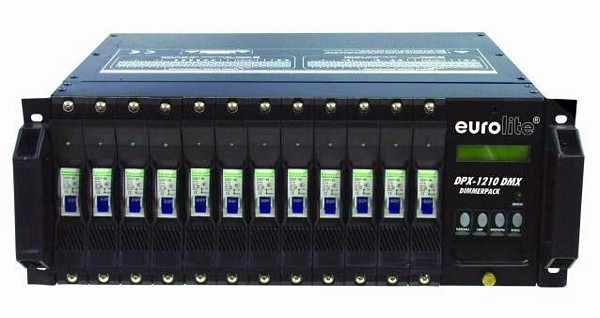

EUROLITE DPX-1210 DMX 12-kanavainen himmennin pack

EUROLITE, DPX-1210 DMX 12-channel pack, can be dimmed/switched 12x 2300W, Max. output 27600W, pole connectors

DPX-1210 DMX 19" dimmer pack, digital 12-channel power-pack, 12 x 10 A

- Universal power-pack for professional use
- Can be operated 1-phase or 3-phase
- 12 x 10 A
- DMX-control or analogue control possible
- The DMX-starting address can be adjusted on the device
- Synchronisation of several DPX-1210 possible via DMX
- The channels can either be dimmed or switched
- Adjusting the lamp pre-heat for the dimmed channels
- All modes are displayed via LEDs and the display
- With automatic circuit breaker per channel
- Display of internal temperature and automatic fan-control if overheated
- Channel-outputs on the rearpanel via pole connectors

Technical specifications

Power supply: 230 V AC, 50 Hz ~
Max. power output: 27600 W
Max. current: 120 A

Number of control-channels: 12
Max. output/channel: 2300 W
Max. current/channel: 10 A

Integrated programs: 12

Analogue input: 15-pin Sub-D socket, 12 channels, 0/10 V DC

Output sockets: Via pole connectors
Fuse: 12 x F 10 A, 230 V

Dimensions (WxDxH): 482 x 485 x 176 mm
19" mounting dimensions with 4 u
Minimum mounting depth: 500 mm
Weight: 27 kg
