Crafted Tones, Forged for Rock

With 100 watts of power and two custom 12-inch speakers, the Katana-100/212 delivers a commanding range of gig-worthy tones that gracefully slice through any band scenario. The amp also excels for home playing, with a uniquely efficient design and innovative Power Control that provides inspiring sound and response at low volumes. In addition, the Katana-100/212 includes integrated access to a huge range of BOSS effects, which are customizable using the free BOSS Tone Studio editor software. And with the amp’s powerful Tone Setting memories, you can store your favorite amp channel setups and effects combinations for instant recall.


Katana Version 2: Expanded Effects, More Tone Settings, and Increased Performance Versatility

Available starting in October 2017, the feature-packed Katana Version 2 update adds many user-requested additions and enhancements to the Katana stage amp lineup. New SDE-3000 delay, Phaser 90E, and Flanger 117E effects bring the total number to 58, and the Tone Setting memories have been doubled for even greater versatility while performing. The update also includes newly added channel and global EQs for refined tone-shaping, powerful Cabinet Resonance and Air Feel direct out functions derived from the Waza amp series, and many other great features.

Katana Version 2 is a free, user-installable update for all Katana owners, and is available in the Downloads section.


    Stage-ready 100-watt combo amp with two custom 12-inch speakers
    Five unique amp characters: Clean, Crunch, Lead, Brown (derived from the Waza amp), and Acoustic (for acoustic-electric guitars)
    Choose from a huge selection of customizable effects and effect routing configurations with the BOSS Tone Studio editor software
    Dedicated gain, EQ, presence, and effects controls for adjusting sounds quickly
    Tone Setting memories for storing and recalling all amp and effect settings
    Power Control for achieving cranked-amp tone and dynamic response at low volumes

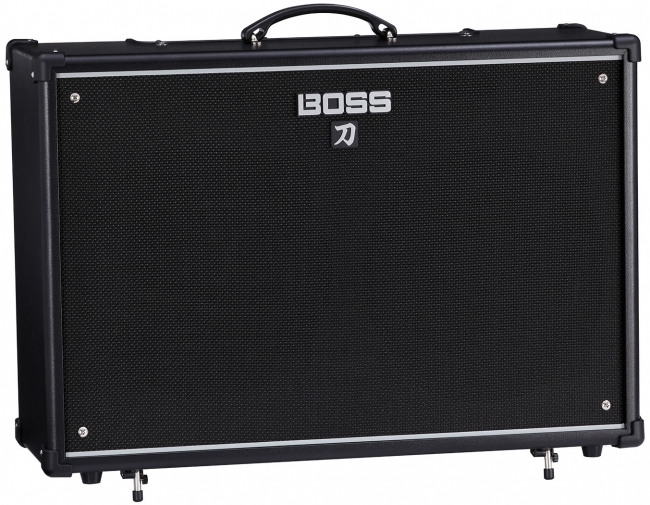

    Built-in tilt stand for optimal monitoring and sound projection
    Pro setups available at BOSS Tone Central

    Katana Version 2 Newly Added Features
    Tone Setting memories increased from four to eight (two banks of four)
    Access to 58 total effects (SDE-3000 delay, Phaser 90E, and Flanger 117E types added)
    Full-time channel and global parametric EQs for refined tone shaping
    Three Cabinet Resonance types adjust the interaction between the amp’s output section and speaker, enabling you to fine-tune the feel and tone of the amp
    Cabinet simulation on the line, USB, and phones/recording outputs enhanced with three Air Feel settings for adding depth and dimension to direct tones
    Reverb section now supports delay and delay-plus-reverb in addition to reverb only
    Expanded send/return routing options for inserting external processing in the effects loop


Specifications
Rated Power Output
    100 W
Nominal Input Level
    INPUT: -10 dBu (1 M ohm)
    AUX IN: -10 dBu (20 k ohms)
    RETURN IN: -10 dBu (100 k ohm)
Speaker
    30 cm (12 inches) x 2

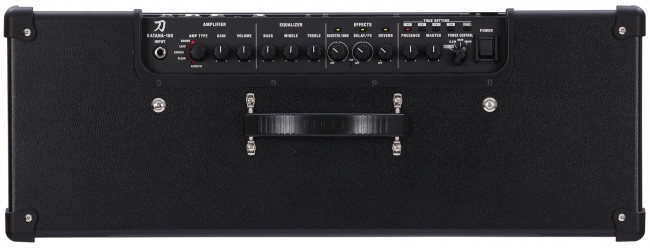

Controls
    POWER switch
    MASTER knob
    PRESENCE knob
    POWER CONTROL switch (STANDBY, 0.5 W, 50 W, 100 W)
    [AMPLIFIER]
    AMP TYPE knob (ACOUSTIC, CLEAN, CRUNCH, LEAD, BROWN)
    GAIN knob
    VOLUME knob
    [EQUALIZER]
    BASS knob
    MIDDLE knob
    TREBLE knob
    [MULTI EFFECT]
    BOOSTER/MOD button
    DELAY/FX button
    REVERB button
    TAP button
    BOOSTER/MOD knob
    DELAY/FX knob
    REVERB knob
    [TONE SETTING]
    CH1 button
    CH2 button
    CH3 button
    CH4 button
    PANEL button
Indicators
    ACOUSTIC
    CLEAN
    CRUNCH
    LEAD
    BROWN
    BOOSTER/MOD
    DELAY/FX
    REVERB
    TAP
    CH1
    CH2
    CH3
    CH4
    PANEL

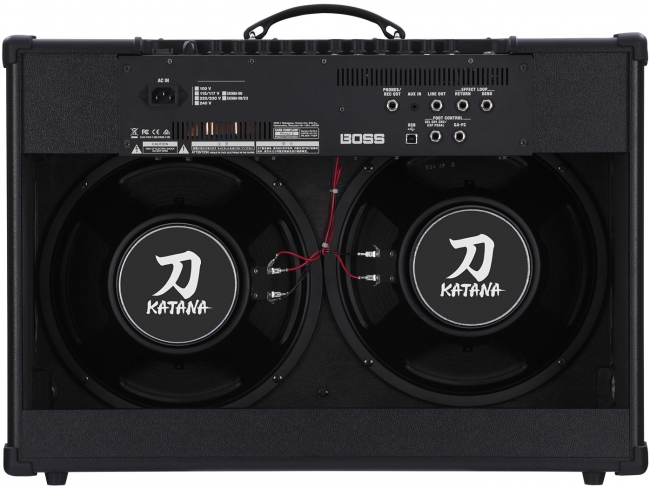

Connectors
    INPUT jack: 1/4-inch phone type
    AUX IN jack: Stereo miniature phone type
    REC OUT/PHONES jack: Stereo 1/4-inch phone type
    SEND jack: 1/4-inch phone type
    RETURN jack: 1/4-inch phone type
    LINE OUT jack: 1/4-inch phone type
    EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
    GA-FC jack: 1/4-inch TRS phone type
    USB port: USB B type
    AC IN jack
Power Consumption
    77 W
Accessories
    Owner's manual
    Power cord
    GA-FC sticker
Options (sold separately)
    Footswitch: BOSS FS-5L
    Expression pedal: Roland EV-5, BOSS FV-500L, BOSS FV-500H
    GA FOOT CONTROLLER (GA-FC)
Size and Weight
Width
    670 mm
    26-7/16 inches
Depth
    248 mm
    9-13/16 inches
Height
    484 mm
    19-1/16 inches
Weight (including battery)
    19.8 kg
    43 lbs 11 oz
