Omnitronic E-3 2x150W stereovahvistin

Hinta: 296,00 € 29600

Tälle tuotteelle toimituskulut alk. 7,90 € (Postipaketti)

Määrä: kpl

Omnitronic E-3 2x150W stereovahvistin. Hyväsoundinen päätevahvistin jossa tarpeeksi tehoa vaikka keikalle, karaokeen, discoon jne.

Power supply:	115/230 V AC, 50/60 Hz ~
Power consumption:	189 W (1/8 power)
Power output sine:
Stereo 4 ohms	2 x 150 W
Stereo 8 ohms	2 x 100 W
8 ohms bridged	1 x 300 W
Frequency range:	10-50000 Hz, ± 1.5 dB
Damping factor:	>350
Distortion factor:	0.1 %
Slew rate:	40 V/µsec
S/N ratio:	>90 dB
Channel seperation:	>70 dB/ 1 kHz
Input sensitivity:	0.77 V
Input impedance:	20 kohms
Input voltage:	max. 21 dBV/9V

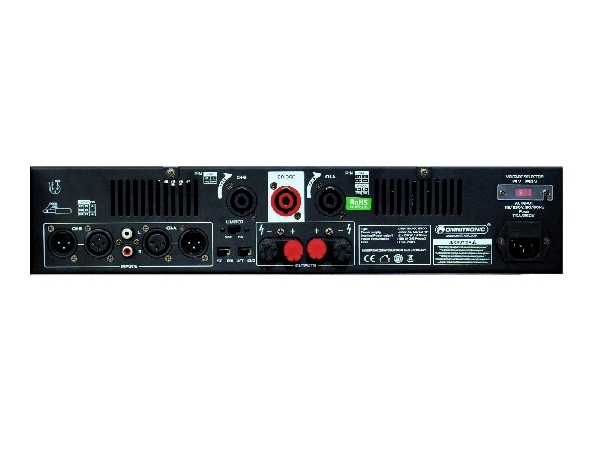

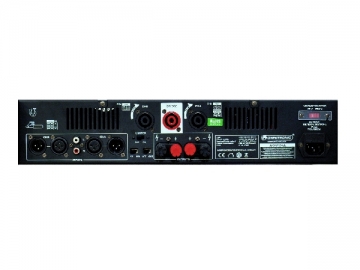

Input connectors:	2 x XLR, 1 x stereo RCA
Output connectors:	2 x Speaker, 1 x Speaker (bridge), 2 x pairs of screw terminals, 2 x XLR (feed-through output)

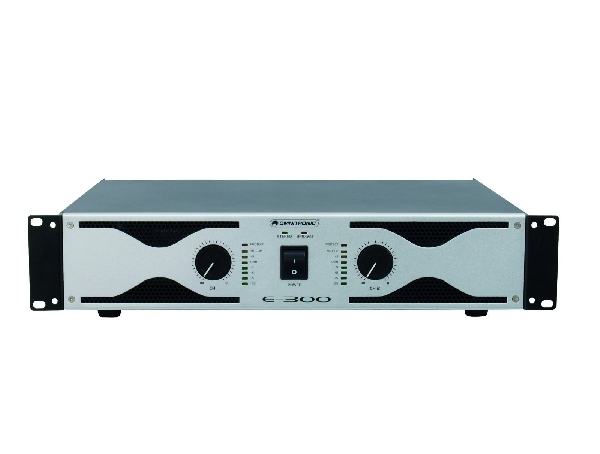

Control elements:	power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector
LED indicators:	stereo, bridged (globally), protect, and 7-fold output meter with clip LED (per channel)
Protection circuits:	short-circuit, overheat, DC voltage, power on/off transients, softstart
Construction:	steel chassis with aluminum front panel
Dimensions (DxWxH):	345 x 482 x 100 mm (19", 2 U)
Weight:	8.5 kg

2 operating modes can be selected (stereo or bridged) with LED indicators
Limiter, switchable
Speaker switch-on delay
2 level controls
Each channel with LED for activated protective circuit (protect) and 7-fold output meter with clip LED
Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
Groundlift switch against humming
Fan cooling
Signal inputs via XLR or RCA jacks, with XLR feed-through output
Speaker outputs via lockable Speaker jacks and pairs of screw terminals
Additional Speaker plug for 8-ohm bridge operation
Rack installation with 2 units
