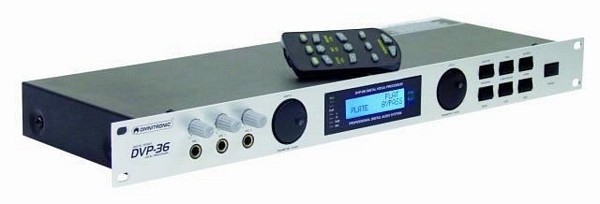

Omnitronic DVP-36

Omnitronic DVP-36

- Laulun prosessointiin, myös puhujille
- Mukana myös vocoder toiminne

The digital vocal processor

- Vocal processor for processing different signal settings
- Signal connection via 3 independent microphone inputs
- Gain-control per microphone channel
- Parametric 5-band EQ
- Subwoofer output
- Six different harmony modes: 3-parts Harmony, Melody, Relative, Vocoder, Male lead, Female Lead
- Seven different effect modes: Hall, Room, Plate, Stereo, Mono, Stereo Echo & Reverb, Mono Echo & Reverb
- Wireless remote control for adjusting Master Volume, Echo, Reverb and Hall
- Individual settings can be memorized and quickly be called up

Technical specifications

Power supply: 115/230 V AC, 50/60 Hz ~
Power consumption: 10 W

Music
- Noise Rate: >95 dB
- Distortion: 0.01 %, 20 Hz - 20 kHz
- Frequency range: 20 Hz - 20 kHz, ±1 dB
- Output voltage: 0.707 V
- Output impedance: 47 kOhms

Tone control/channel
- Treble: ±12 dB at 8 KHz
- Bass: ±12 dB at 250 Hz

Subwoofer
- Distortion: 0.07 %, 20 - 200 Hz
- Frequency range: 20 - 200 Hz, ±1 dB

Microphone
- Noise Rate: >80 dB
- Distortion: 0.04 %, 50 Hz - 16 kHz
- Frequency range: 50 Hz - 16 kHz, ±1 dB
- Output voltage: 0,1-0,5 V
- Output impedance: 47 kOhms

Tone control/channel
- Treble: ±6 dB at 5-10 KHz
- Middle: ±6 dB at 500 Hz - 3 KHz
- Bass: ±6 dB at 60-150 Hz

Dimensions (WxDxH): 520 x 250 x 90 mm
Weight: 3.5 kg
