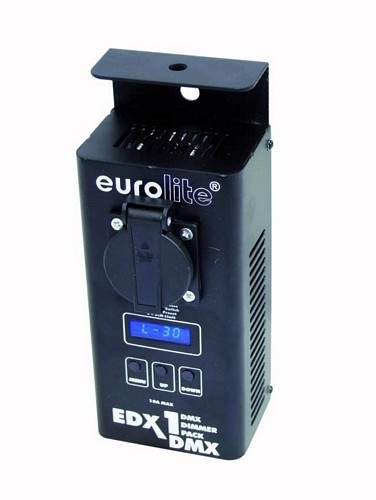

EUROLITE EDX-1 DMX himmenin pakki 10A

EUROLITE EDX-1 DMX himmenin pakki 10A

dimmer pack 10A, Max. power output 2300W

1-channel DMX-dimming pack

- 1 controllable channel
- Max. output and selectable
- Manual dimming possible
- Selectable between dimmer and switchpack
- Maximum current 16 A
- Output via 1 safety socket
- LED-display for selecting DMX adress and menu-settings
- DMX-512 input and output
- Wall, ceiling or trussing installation possible

Technical specifications

Power supply: 230 V AC, 50 Hz ~
Max. power output: 2300 W
Max. total current: 10 A
Number of channels: 1

Output socket: 1 safety power outlet

DMX-output: 3-pin XLR-mounting-plug
DMX-input: 3-pin XLR-mounting-jack

Dimensions: 230 x 95 x 70 mm
Weight: 1 kg
