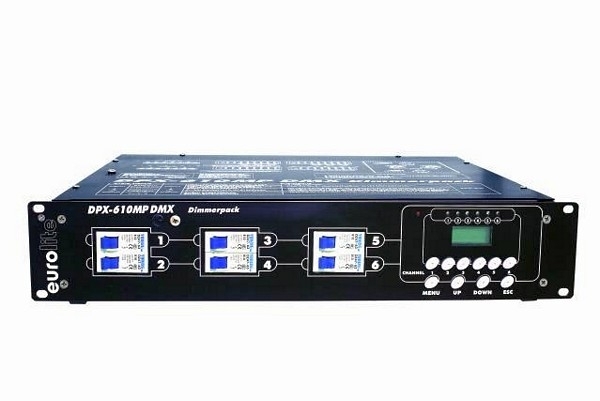

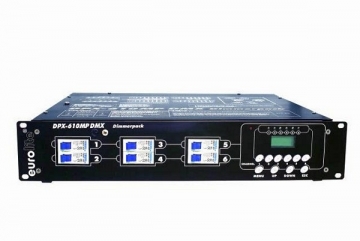

EUROLITE DPX-610 MP DMX-kontrolleri analogitoiminnolla

EUROLITE DPX-610 MP DMX-kontrolleri analogitoiminnolla

Digital 6-channel dimming pack

- Universal dimming pack for professional use
- Can be operated 1-phase or 3-phase
- 6 x 10 A
- DMX-control or analogue control possible
- The DMX-starting address can be adjusted on the device
- Synchronisation of several DPX-610 possible via DMX
- Adjusting the lamp pre-heat
- All modes are displayed via LEDs and the display
- With automatic circuit breaker per channel
- Outputs via two industrial sockets

Technical specifications

Power supply: 230-380 V AC, 50 Hz ~
Max. power output: 13800 W
Max. current: 60 A

Number of control-channels: 6

Max. output/channel: 2300 W
Max. current/channel: 10 A

Integrated programs: 12

Output sockets: two 16-pin sockets
Circuit breaker: 6 x B 10 A

Dimensions (WxDxH): 443 x 482 x 95 mm
19" mounting dimensions with 2 u
Minimum mounting depth: 500 mm
Weight: 8,5 kg
