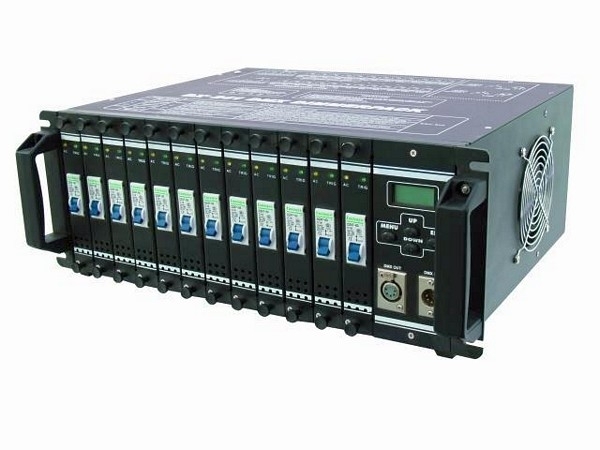

EUROLITE DPMX-1216 DMX 12-kanavainen power pack

EUROLITE DPMX-1216 DMX 12-kanavainen power pack

Digital 12-channel power-pack 12 x 16 A

- Universal power-pack for professional use
- Can be operated 1-phase or 3-phase
- 12 x 16 A
- DMX-control or analogue control possible
- Synchronisation of several devices possible via DMX
- The channels can either be dimmed or switched
- Adjusting the lamp pre-heat for the dimmed channels
- All modes are displayed via LEDs and the display
- With automatic circuit breaker per channel
- Channel-outputs on the rearpanel via pole connectors

Technical specifications

Power supply: 230-380 V AC, 50 Hz ~
Max. power output: 44160 W
Max. current: 192 A

Number of control-channels: 12
Max. output/channel: 3680 W
Max. current/channel: 16 A

Integrated programs: 12

Analogue input: 15-pin Sub-D socket, 12 channels, 0/10 V DC
Output sockets: Via pole connectors
Fuse: 12 x F 16 A, 230 V

Dimensions (WxDxH): 482 x 485 x 176 mm
19" mounting dimensions with 4 u
Minimum mounting depth: 500 mm
Weight: 27 kg
